Class L · Heavy-duty power
Heavy-duty circular connectors for field power distribution and generator connections. Circuit layouts distinguish supply types and current classes.
Land · Marine
Generator, shelter and equipment power distribution.
| Standard | MIL-DTL-22992, Class L |
|---|---|
| Circuit ratings | 40–200 A, depending on configuration |
| Supply formats | DC, single-phase and three-phase; 60/400 Hz arrangements |
| Coupling | Double-stub threaded coupling |
| Selection | Match current class, supply voltage, frequency and grounding layout |
Reference-family data. Confirm dimensions, ratings, materials and approvals for the exact quoted part.
Current classes are separate configurations. Confirm the complete qualified part and cable assembly before selection.
Family reference imageQWLD reference · Threaded circular
Rugged threaded connectors for power and control wiring on demanding equipment. Multiple insert patterns support different circuit layouts.
Family reference imageHigh-current contacts · Circular
5015-format power connectors with high-current contact options for equipment feeds, power conversion and distribution.

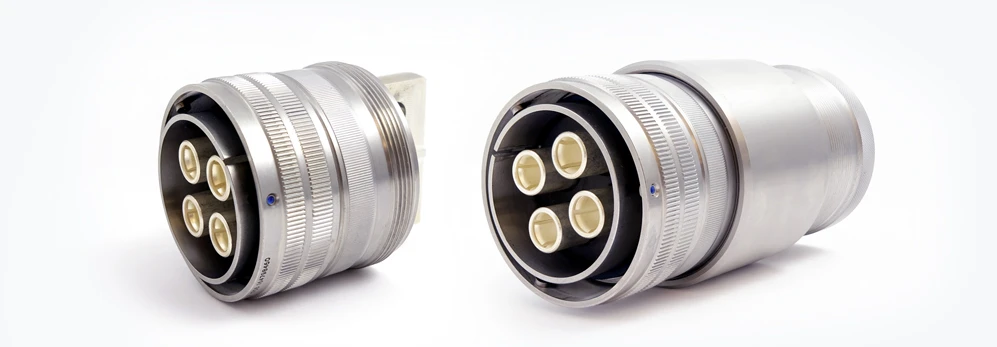

Family reference imageMGT reference · Reverse bayonet
