Fully customizable equipment cabinet with a PDG HMI-5 tailored to the product. Cabinet layout, display housing, colour, controls and graphical interface are defined for your application.
Fully customizable to your application.
Integrated PDG HMI-5 with a product-specific case, colour and graphical interface; six physical keys shown.
Two-compartment metal enclosure based on the existing cabinet design.
Hinged upper access door and removable bolted lower panel.
Internal equipment mounting supports and roof mounting brackets.
Fixed mounting base with application-specific layout and interfaces.
Product reference: PDG-CABINET-HMI5 · Price and lead time on request
Illustrative enclosure concept based on the existing cabinet design. Final layout is defined for the application.
Configuration overview
Operator interface
Integrated PDG HMI-5 with configurable housing, colour, controls and graphical interface
Enclosure concept
Two-compartment metal equipment cabinet
Upper access
Hinged door with integrated HMI-5
Lower access
Removable bolted panel with handles
Equipment mounting
Internal supports with an application-specific layout
Installation
Fixed mounting base and roof mounting brackets in the illustrated configuration
Dimensions and interfaces
Defined for the application
Customization
Fully customizable cabinet and HMI configuration
Product-specific display design. The display is fully customizable for each product: housing shape and dimensions, colour and finish, bezel design, mounting, controls, graphical interface, branding and application software are tailored to the agreed requirements.
Cabinet dimensions, internal equipment layout, mounting details and electrical interfaces are project-specific.
CUSTOMIZATION
Fully customizable.
Fully customizable to your application. Cabinet dimensions, compartment arrangement, internal mounting, door and access-panel layout, electrical interfaces, finish, HMI screens and application software can be tailored to the agreed project requirements.
Cabinet architecture
Dimensions, compartments, doors, removable panels and finish.
Equipment integration
Internal supports, mounting details, cable routing and electrical interfaces.
Operator interface
Display case design, colour, mounting, controls, screen layouts, branding and application software.
CABINET VIEWS

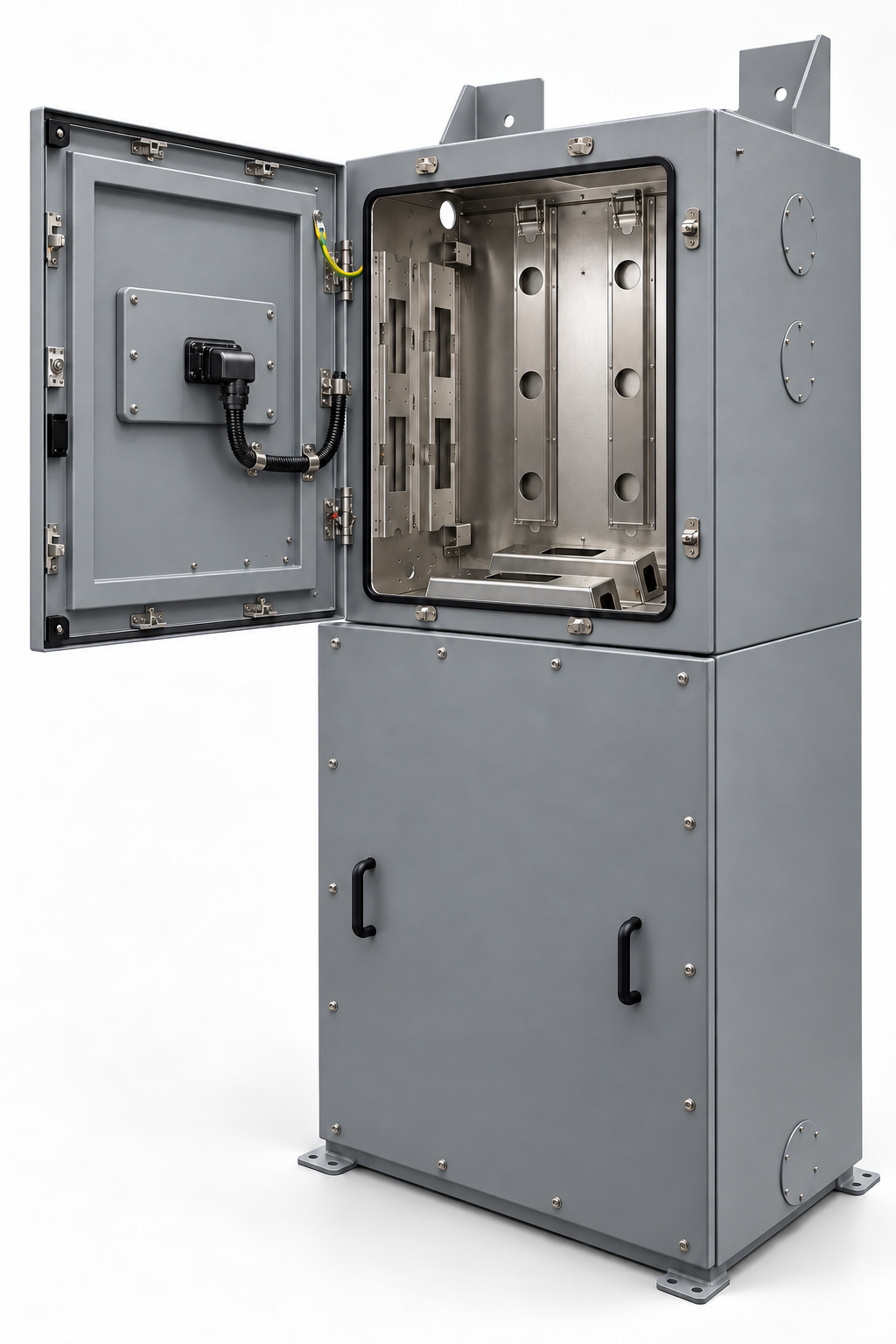

Closed and open service views.
Closed cabinet viewOpen service view
HOUSING & MECHANICAL INTEGRATION
Designed around the equipment inside.
The equipment cabinet housing brings equipment mounting, operator access and service space into one configurable mechanical design. The illustrated two-compartment arrangement combines a hinged upper door with a removable lower panel, internal supports and a fixed mounting base. Compartment sizes, mounting points, cable routes and interface openings are developed around the equipment to be installed.
Fully customizable: enclosure dimensions and layout, materials, colour and finish, doors and access panels, mounting, cable entries, connector cut-outs and thermal provisions. The display case, bezel, colour, controls, graphical interface, branding and software are tailored to the product.
Equipment cabinet housing — open integration concept. Illustrative configuration; final equipment and layout are project-specific.
DEFINE YOUR PDG PRODUCT
Tell us what your application needs.
Share your electrical requirements, available space, interfaces, quantity and operating conditions. We will agree the product configuration and quotation with you.
Fully customizable modular battery packs with voltage configurations from 38 V to 900 V DC and energy capacity up to 18 kWh, depending on the selected configuration.
Fully customizable battery charger cabinet with a product-specific PDG HMI-5 housing, colour, controls and graphical interface. Charging ratings and interfaces are defined for your application.
