Description
Fully customizable. The PDG Battery Charger Cabinet combines project-specific charging electronics with the integrated PDG HMI-5 operator interface in a wheeled metal enclosure. The illustrated cabinet concept incorporates a product-specific graphical display with six physical keys, a front-panel emergency stop and mains isolator, ventilation grilles, and removable service panels. Lockable castors support positioning and service access. AC input, DC charging voltage, charging current, charging power and battery compatibility are specified for the application.
Key features
- Fully customizable to your application.
- Integrated PDG HMI-5 with a product-specific case, colour and graphical interface; six physical keys shown.
- Front-panel emergency stop and mains isolator.
- Ventilated metal cabinet with removable service panels.
- Mobile base with lockable castors.
- Application-specific electrical ratings and battery compatibility.
Configuration overview
- Operator interface: Integrated PDG HMI-5 with configurable housing, colour, controls and graphical interface
- AC input: Project-specific
- DC charging voltage, current and power: Project-specific
- Battery compatibility: Specified for the selected battery configuration
- Enclosure concept: Ventilated metal cabinet with removable service panels
- Front-panel controls: Emergency stop and mains isolator in the illustrated configuration
- Mobility: Lockable castors in the illustrated configuration
- Customization: Fully customizable electrical, mechanical and HMI configuration
Fully customizable to your application
Fully customizable to your application. Charging electronics, enclosure dimensions and layout, mounting or mobility, electrical interfaces, HMI screens and application software can be tailored to the agreed project requirements.
AC input, DC output, current, power and battery compatibility are project-specific.
Illustrative enclosure concept. Final configuration is defined for the application. Price and lead time on request.
Product-specific display design
The display is fully customizable for each product: housing shape and dimensions, colour and finish, bezel design, mounting, controls, graphical interface, branding and application software are tailored to the agreed requirements.
The illustrated housing, colour, screen layout and key arrangement are examples of a possible configuration.
Housing & mechanical integration

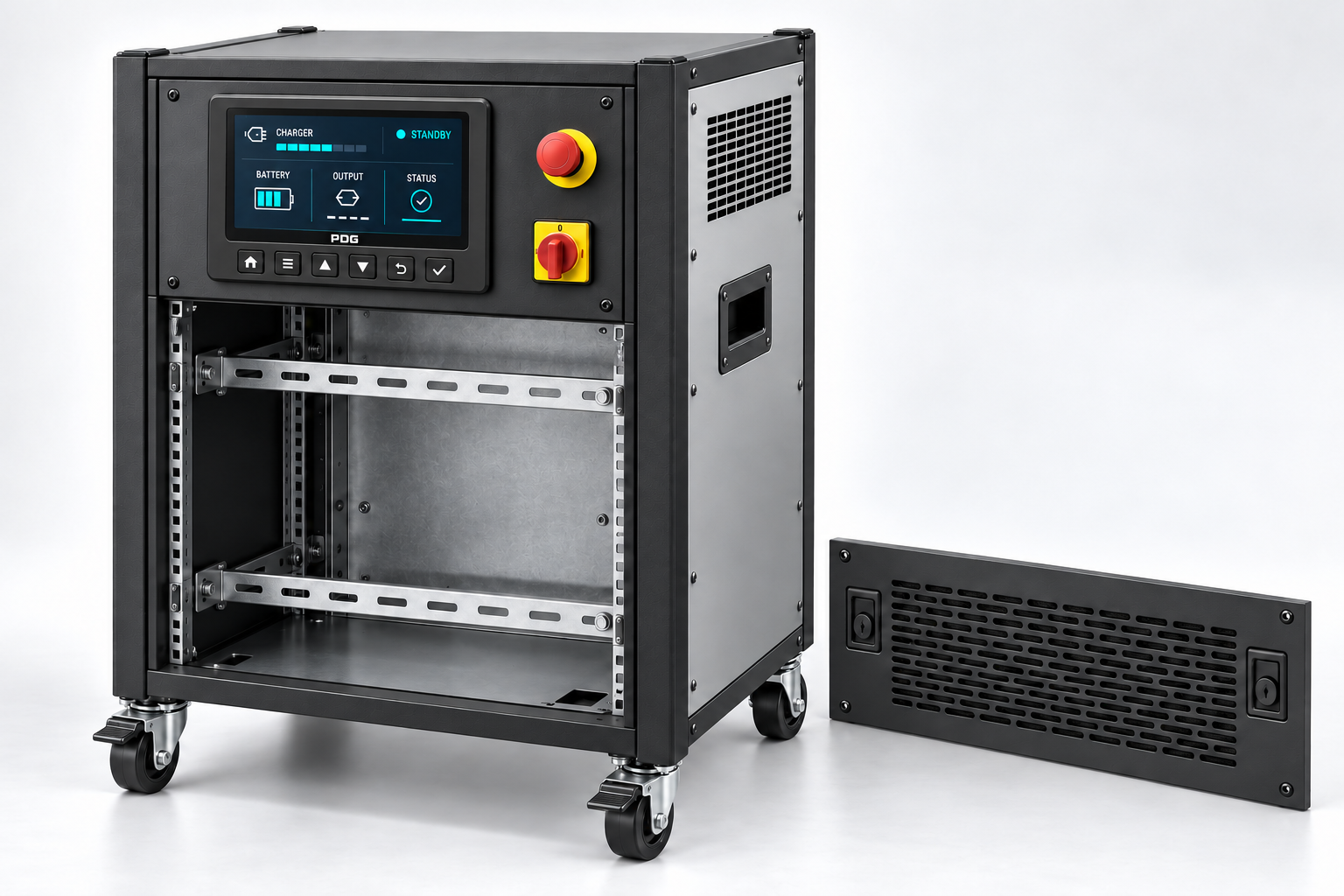

The charger enclosure provides a configurable mechanical platform for integrating charging electronics, an operator display and front-panel controls. The illustrated framed cabinet uses removable front service panels, ventilated surfaces and lockable castors. Equipment supports, cable routing, connector positions and cooling provisions are developed around the charging system and its installation.
Fully customizable: enclosure dimensions and layout, materials, colour and finish, doors and access panels, mounting, cable entries, connector cut-outs and thermal provisions. The display case, bezel, colour, controls, graphical interface, branding and software are tailored to the product.
The open housing illustration shows an integration concept. Final equipment, dimensions and configuration are defined for the application.
