Description

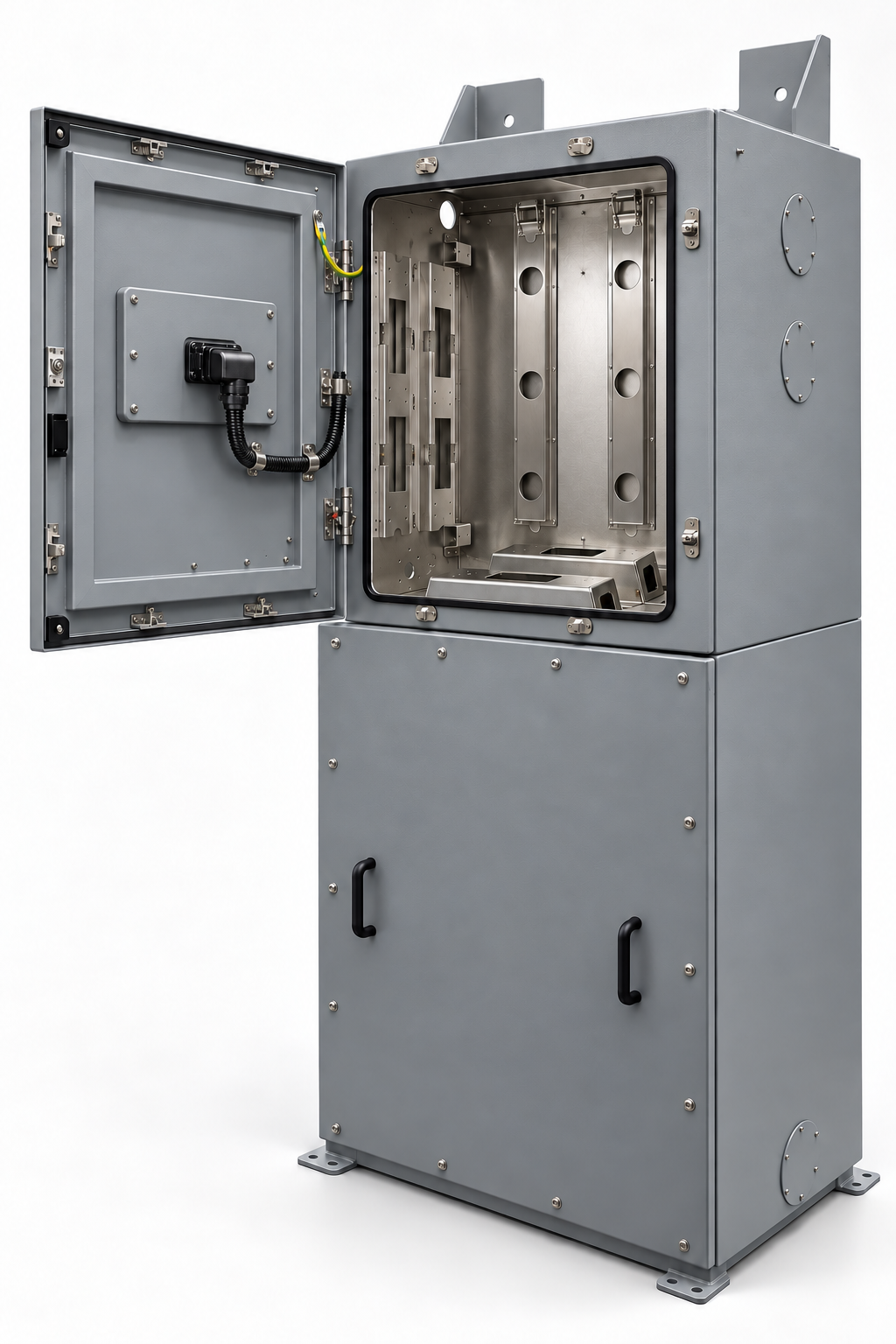

Fully customizable. The PDG Equipment Cabinet with Integrated HMI-5 combines the existing two-compartment cabinet design with a door-mounted operator interface. The upper hinged door integrates a product-specific PDG HMI-5 display; six physical keys are shown in this example. A removable bolted lower panel provides separate access to the lower compartment. Internal mounting supports, roof mounting brackets and a fixed mounting base support application-specific integration. The service-view concept shows protected display cable routing and a door bonding strap. Cabinet dimensions, internal layout and electrical interfaces are defined for the application.
Key features
- Fully customizable to your application.
- Integrated PDG HMI-5 with a product-specific case, colour and graphical interface; six physical keys shown.
- Two-compartment metal enclosure based on the existing cabinet design.
- Hinged upper access door and removable bolted lower panel.
- Internal equipment mounting supports and roof mounting brackets.
- Fixed mounting base with application-specific layout and interfaces.
Configuration overview
- Operator interface: Integrated PDG HMI-5 with configurable housing, colour, controls and graphical interface
- Enclosure concept: Two-compartment metal equipment cabinet
- Upper access: Hinged door with integrated HMI-5
- Lower access: Removable bolted panel with handles
- Equipment mounting: Internal supports with an application-specific layout
- Installation: Fixed mounting base and roof mounting brackets in the illustrated configuration
- Dimensions and interfaces: Defined for the application
- Customization: Fully customizable cabinet and HMI configuration
Fully customizable to your application
Fully customizable to your application. Cabinet dimensions, compartment arrangement, internal mounting, door and access-panel layout, electrical interfaces, finish, HMI screens and application software can be tailored to the agreed project requirements.
Cabinet dimensions, internal equipment layout, mounting details and electrical interfaces are project-specific.
Illustrative enclosure concept based on the existing cabinet design. Final layout is defined for the application. Price and lead time on request.
Product-specific display design
The display is fully customizable for each product: housing shape and dimensions, colour and finish, bezel design, mounting, controls, graphical interface, branding and application software are tailored to the agreed requirements.
The illustrated housing, colour, screen layout and key arrangement are examples of a possible configuration.
Housing & mechanical integration
The equipment cabinet housing brings equipment mounting, operator access and service space into one configurable mechanical design. The illustrated two-compartment arrangement combines a hinged upper door with a removable lower panel, internal supports and a fixed mounting base. Compartment sizes, mounting points, cable routes and interface openings are developed around the equipment to be installed.
Fully customizable: enclosure dimensions and layout, materials, colour and finish, doors and access panels, mounting, cable entries, connector cut-outs and thermal provisions. The display case, bezel, colour, controls, graphical interface, branding and software are tailored to the product.

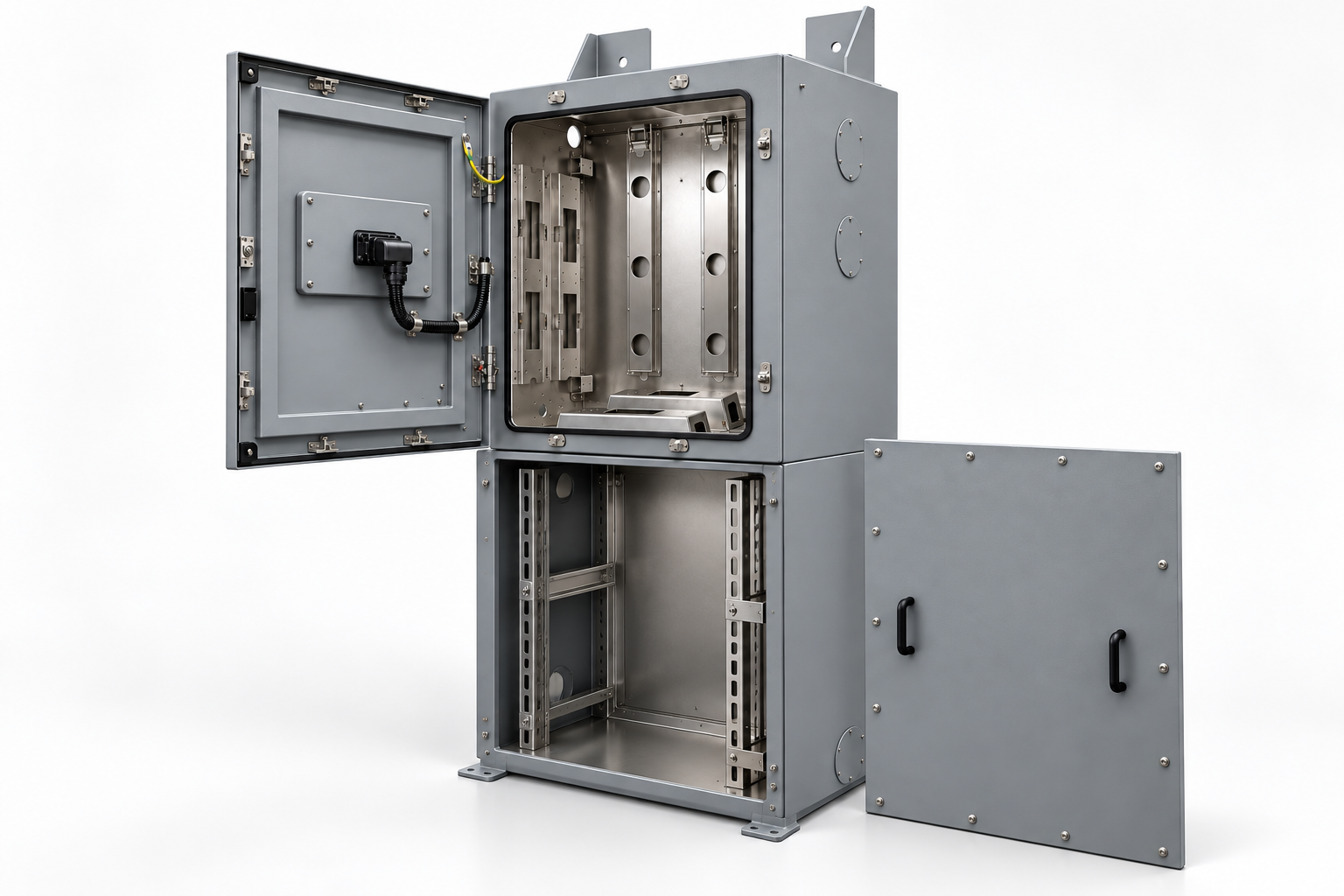

The open housing illustration shows an integration concept. Final equipment, dimensions and configuration are defined for the application.
